c-line Drives

Economical positioning inverters

Allrounder for machine automation

The c-line family offers the right device series for practically all drive tasks and motor variants. The basis of all drive controllers is identical. Fast installation and smooth commissioning with preset motion solutions, even with third-party motors, is a matter of course.
Flexible adaptations to the motion task are possible with the PLC without additional costs. The integrated CANopen field bus and the wide range of options ensure perfect integration into the automation solution.

Your benefits at a glance

Wide power range (2 A-210 A, 375 W-110 kW)
Wide mains voltage range (24 V-48 V DC, 1x230 V AC, 3x400V AC)
Closed- or open-loop motor operation and device variants
Integrated mains filter and 24 V supply
STO safety technology

Cool

cooling concepts in air- and liquid-cooled design

Flexible

motion solutions with integrated PLC

Economical

drive solutions and series

Fast

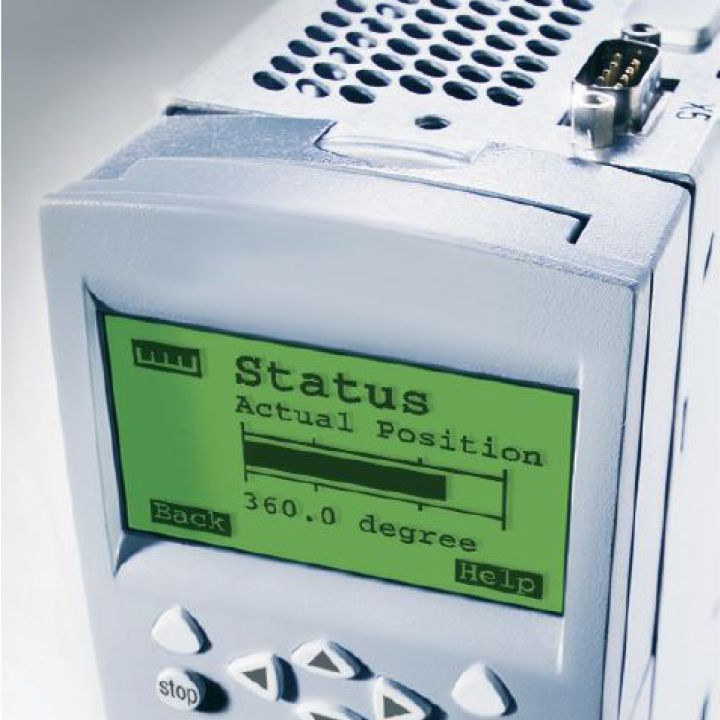

commissioning with graphical PC software or keypad

Unlimited motion

Optimized for positioning, speed- or torque-controlled operation is also possible as an alternative. Preset versatile motion solutions with axis-internal profile generation facilitate commissioning.

Motion block table with intelligent follow-up job logic
CANopen drive profiles according to DS402
Position- or speed -synchronous electronic gear
Path optimized rotary table operation

Freely programmable motion profiles with the PLC
Jog and homing mode

Show less

Features

The c-line Drives offer hardware and software solutions tailored to your application as well as partnership-based services.

CANopen for free

In accordance with the motion profile DS402, the drive is parameterized and the operating modes are controlled. Access to all data allows comprehensive machine and drive diagnostics.

Integrated mains filter

The mains filter is already integrated at the factory to comply with legal standards. This also reduces the number of components in the control cabinet and simplifies installation.

Precise motor control

The control technology also compensates for cogging and friction torques as well as spindle pitch errors. In addition, filters for damping mechanical vibrations can be parameterized.

System-Partnership

Professional project management is an important component for mutual success, so that you stay on time and within budget. The faster the "time to market" the better.

Technical specifications

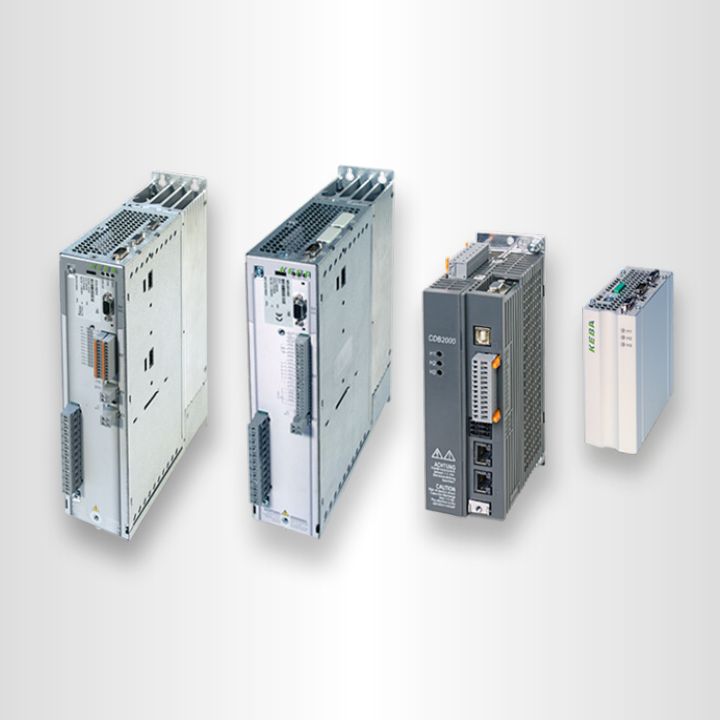

	CDB2000	CDB3000 \| CDB3000-OL	CDE3000	CDF3000
Mains voltage	1 x 230 V AC	1 x 230 V AC \| 3 x 400 V AC - 480 V AC	1 x 230 V AC \| 3 x 400 V AC - 480 V AC	24 V DC - 48 V DC
Rated current	4 A	2,2 A - 210 A	2,2 A - 210 A	2 A - 8 A
Drive power	1,8 kVA	2 kVA - 128 kVA	2 kVA - 128 kVA	480 VA
Control types	closed-loop (position, speed, torque) / open-loop (V/f control)	closed-loop (position, speed, torque) / open-loop (V/f control)	closed-loop (position, speed, torque) / open-loop (V/f control)	closed-loop (position, speed, torque) / open-loop (V/f control)
Motor type	Asynchronous	Asynchronous	Asynchronous, Synchronous	Asynchronous, Synchronous
Encoder	TTL, SSI	TTL, SSI	TTL, SSI, Resolver	TTL, SSI, Resolver
Fieldbus	CANopen (CiA 301/402)	CANopen (CiA 301/402)	CANopen (CiA 301/402)	CANopen (CiA 301/402)
Safety	STO (SIL3, PL e, Kat. 4)	STO (SIL3, PL e, Kat. 4)	STO (SIL3, PL e, Kat. 4)	STO (SIL3, PL e, Kat. 4)
Cooling	Air	Air, push-through, cold plate, liquid	Air, push-through, cold plate, liquid	Air
Standards	CE, cUL	CE, cUL	CE, cUL	CE, cUL
Options		PROFIBUS-DP, I/O Extensions	PROFIBUS-DP, I/O Extensions
