Charging station with direct payment
With a charging capacity of up to 480 kW, the KeContact DCS10 Satellite Charger is KEBA's flagship in the DC sector. Payment and billing take place directly at the charging station.
Future-oriented charging
- The KeContact DCS10 Satellite Charger is a powerful DC fast charging system that is available with up to two charging stations. Two charging points are provided per charging station, which are connected to the compact KeContact DCU10 Power Unit.
- The combination of KeContact DCS10 Satellite Charger and KeContact DCU10 Power Unit allows for flexibility in installation.
- Intuitive and customer-friendly operation and AFIR-compliant direct payment are quick and easy directly on the high-resolution 15.6-inch display with debit, Maestro, Girocard, NFC, etc. Contactless payment via Bluetooth is also possible. It is also possible to play advertising videos as added value for the operator.
- A large number of OCCP-based backends are already integrated.
The advantages at a glance
- Modular scalability for charging next-generation electric cars.
- Dynamic energy management to minimize charging time.
- High-resolution 15.6-inch front display for user guidance and direct payment.
- Two direct current (DC) charging connections
- up to 480kW in total:
CCS up to 480kW @1000VDC - Optional cable:
250 A / 450 A uncooled or 500 A cooled
3 m or 5 m length - Advertising inserts can be recorded.
- Stand-alone capable - no backend costs.
- Direct payment with NFC-compatible devices via e.g. Google Pay and Apple Pay. Further payment methods are constantly being added.
- Stand with integrated payment module for ATM, credit and customer cards.
- ATM card and Girocard can be used as customer card.
- An additional 12 AC charging points can be billed and controlled.
Future-proof
Modular product and service solutions
100% flexible and future-proof
Customer service at the highest level
Maximum payment convenience
Economical
Fast return on investment - no back-end costs
Innovative direct payment
Payment as easy and uncomplicated as everyday shopping: this means maximum payment convenience for your customers. Payment is simple, versatile and secure - without commitment and without membership.
Direct payment is made directly at the charging station.
Your customers pay with:
Debit and bank cards
Credit cards
Fleet and customer cards
| KeContact DCS10 Satellite Charger | |||
|---|---|---|---|
| Technical data DC | Technical data DC | ||
| Nominal voltage | 1000 VDC | ||
| Nominal current peak (max. charging current) | 500 A | ||
| Rated power maximum | 480 kW | ||
| Charging plug | CCS Combo-2 | ||
| Technical data housing | Technical data housing | ||
| Dimensions | H/W/ D: 1865 /450/ 500 mm (without plug holder, without cable management) | ||
| Weight (max.) | 175 Kilogramm | ||
| Mounting location/type | indoor/outdoor, floor mounting on concrete base (foundation) | ||
| Humidity (relative) | 5-95% non-condensing | ||
| Temperature ranges | Ambient conditions / operation / storage / transportation: - 25 to 45 °C | ||
| Housing / protection class | Stainless steel 1.4301 (AISI 304), robust design (IP54/IK10), white powder-coated | ||
| Customized design | Yes | ||
| Display | Yes | ||
| Display size (inch) | 15,6” | ||
| Interface | Buttons | ||
| Accessibility | Yes | ||
| Status display (Charging status for users) | Status LED on the column, via 15.6" display, via online access | ||
| Charging cable | Charging cable | ||
| Disposals (DC) | 2 | ||
| Charging points | 2 | ||
| Number of charging cables | 2 | ||
| Charging cable with liquid cooling | Optional | ||
| Simultaneous charging of several vehicles | Ja | ||
| Cable length | 3 m (without cable management), 5 m (with cable management) | ||
| Billing system or authentication method | Billing system or authentication method | ||
| NFC Reader | Optional | ||
| Energy meter (MID) | Optional | ||
| Authentication charging process | RFID, OCPP, Fahrzeug-ID (MAC), free-charge | ||
| Direct payment | Optional | ||
| Payment options (app, card, etc) | 1. RFID card 2. Credit/debit cards (Mastercard, VISA), Maestro /Bankomat (depending on acquiring bank) 3. Mobile payment (Google Pay / Apple Pay) | ||
| Zahlungsterminal Hardware | 1. Worldline VALINA 2. CCV IM30 (from Q3/2024) 3. Feig cVEND PIN | ||
| Standards & certifications | Standards & certifications | ||
| Demonstrably fulfills the following guidelines | 1. Low voltage directive; Low voltage directive (LVD) (2014/ 35 / EU) 2. EMC directive; EMC directive (2014/30/EU) | ||
| Meets basic technical standards: | Holistically | ||
| IEC 61851-1 | Yes | ||
| IEC 61851-23 | Yes | ||
| IEC 61851-21-2:2018 | Yes | ||
| DIN SPEC 70121:2014 | Yes | ||
| DIN EN ISO 15118-1/2 | Yes | ||
| Deutsches Eichrecht | - | ||
| IEC 62196-3 | Yes, via charging cable manufacturer | ||
| Extras | Extras | ||
| Interface for load management | Associated power unit only | ||
| Advertisement Screem | Yes | ||

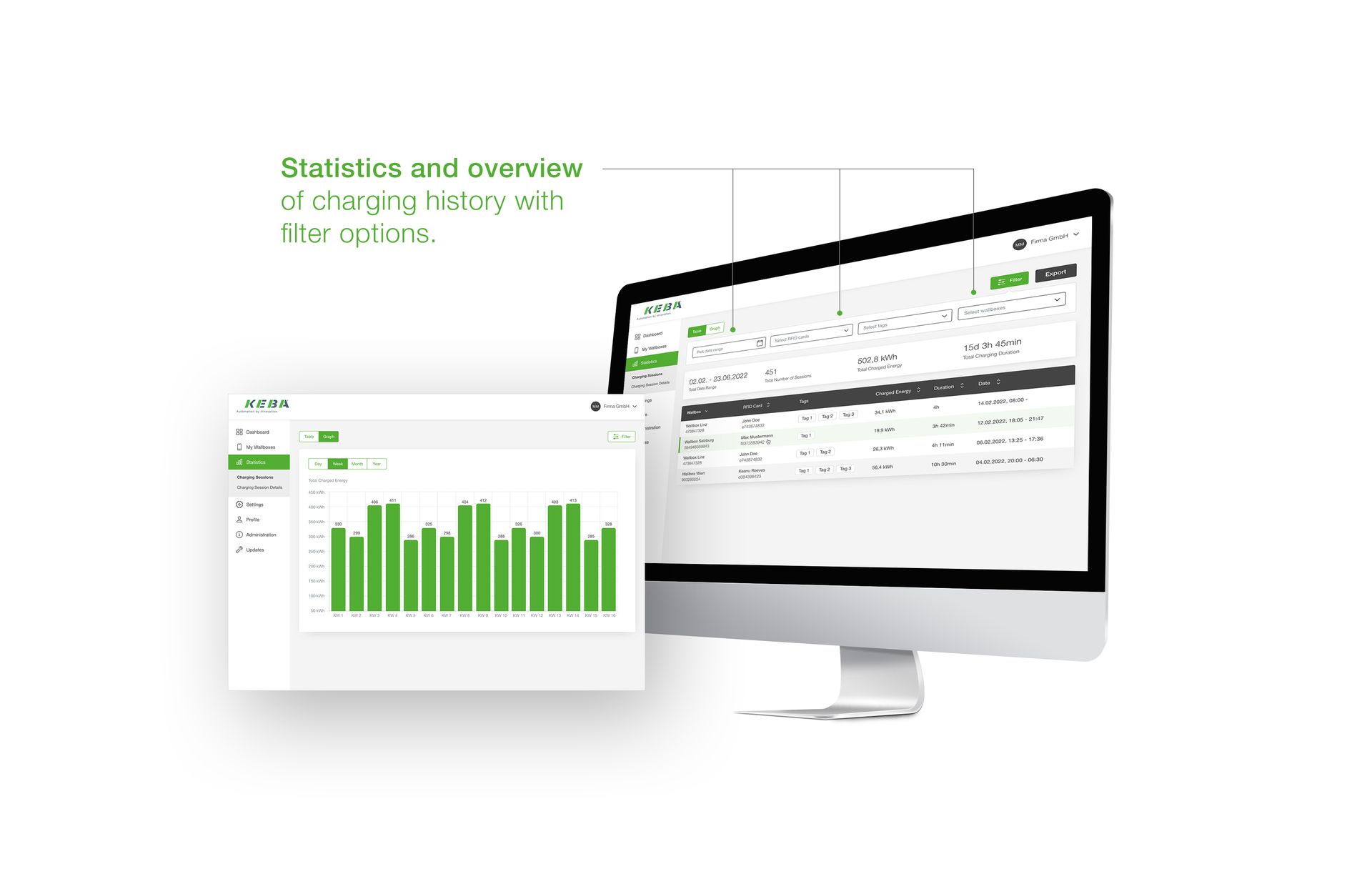

| Operator portal | Location-independent self-administration via online access | ||
| Updates | Yes | ||
Example structure
When equipped with four outlets, the KeContact DCU10 can supply four charging points simultaneously. Each quarter of the power can be freely assigned to each charging point, switched off and switched on again. This enables maximum charging current sales in relation to the investment in the grid connection and charging system.
