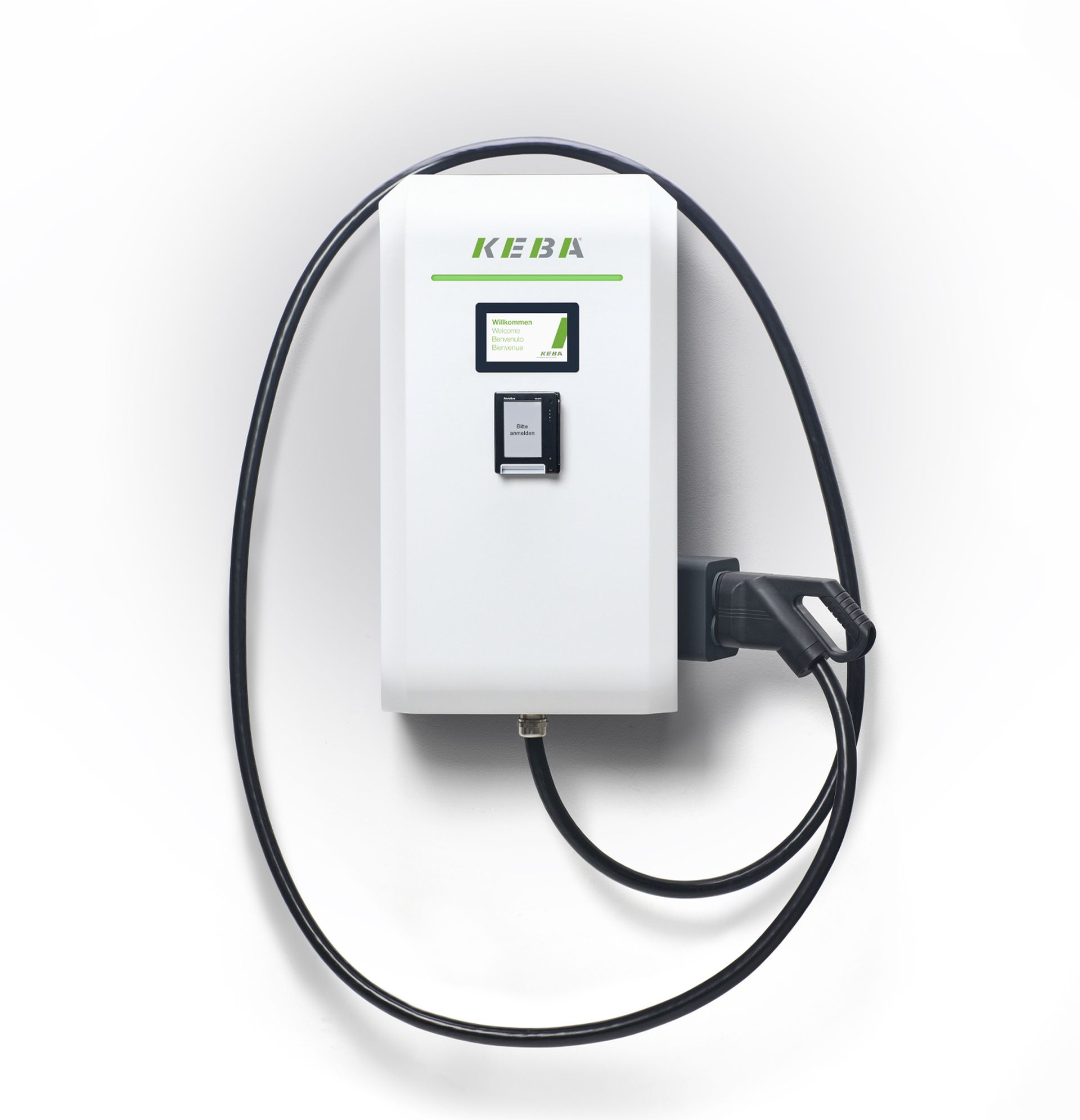

The compact DC wallbox
For public charging and last mile applications
The KeContact DCW15 is a compact DC wallbox with integrated power electronics and optional direct payment capability. This makes it ideal for public and semi-public charging points, e.g. in parking garages, supermarket car parks, hotels, restaurants, and office buildings. The 4 m charging cable ensures excellent handling.
Your benefits at a glance
-
40 kW charging power
-
Fast installation thanks to integrated AC/DC electronics
-

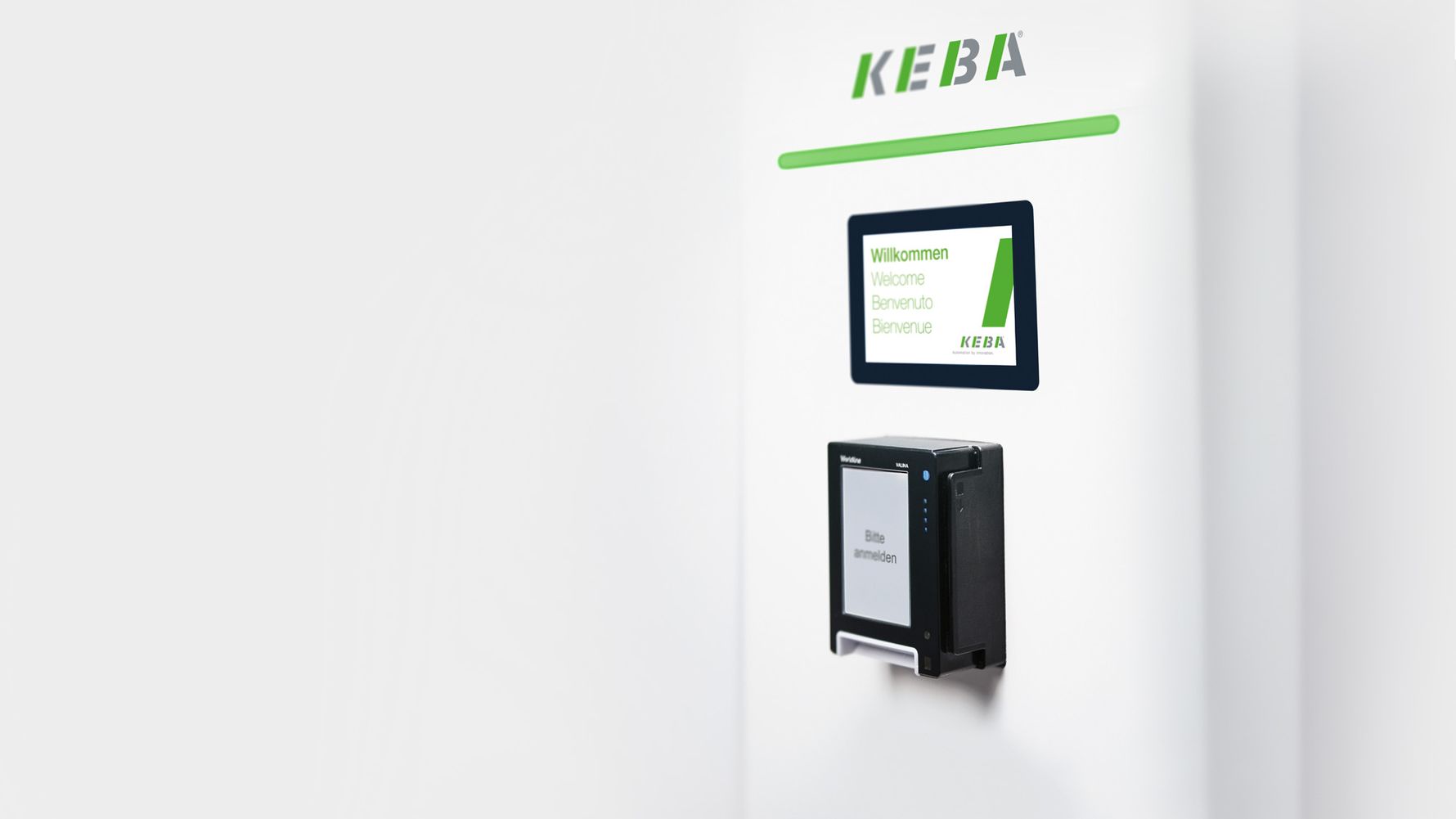

Easy operation via touchscreen; direct payment with all cards possible
-
Flexible charging power: can be adjusted to the available grid connection
AFIR-compliant direct payment
Pay just like at the supermarket checkout: fast, easy, and without any membership or subscription. That means maximum payment comfort for your customers and lower maintenance costs for you as the charge point operator.
Your users can pay with:
Debit and bank cards
Credit cards
Fleet and customer cards

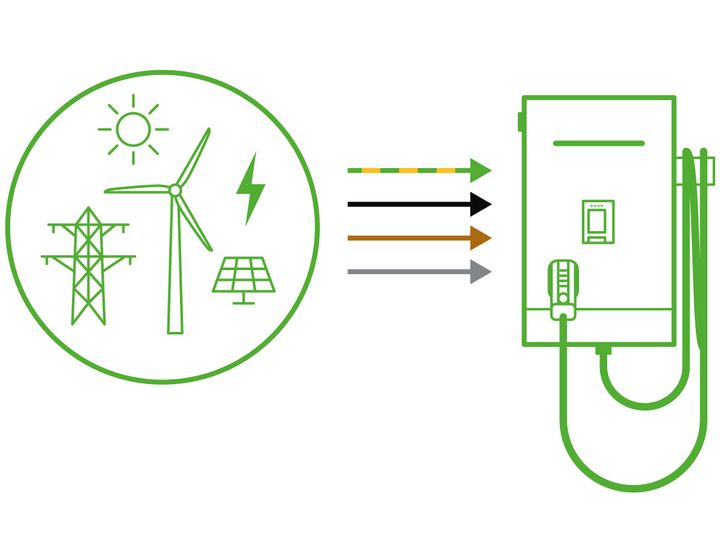

The KeContact DCW15 features one CCS charging outlet and an integrated AC/DC converter, allowing direct connection to the AC grid.
No separate DC backend is required — the wallbox converts AC power internally into DC, providing up to 40 kW of charging power.
This integrated solution reduces installation effort, saves space, and ensures highly efficient energy transfer — ideal for locations requiring fast charging in a compact design.
Technical Data KeContact DCW15
| Performance data | Performance data | ||
|---|---|---|---|
| Rated voltage | max. 1000 VDC | ||
| Rated current (peak / max. charging current) | 150 A | ||
| Rated power | 40 kW | ||
| Charging connector | CCS Combo-2 | ||
| Housing | Housing | ||
| Dimensions (H / W / D) | 703 / 410 / 330 mm (without connector holder) | ||
| Weight (max.) | 108 Kg | ||
| Mounting location / type | Wall / pedestal | ||
| Humidity (relative) | 5–95 %, non-condensing | ||
| Temperature range (ambient / storage / internal) | –25 to +45 °C | ||
| Housing / protection rating | tainless steel 1.4301 (AISI 304), robust design (IP44 / IK10), white powder-coated | ||
| Custom design | Yes, from minimum order quantity | ||
| Operation | Operation | ||
| Display | Yes | ||
| Display size (inches) | 5” | ||
| Operation | Touch | ||
| Accessibility | Depending on mounting | ||
| Status indication (charging status for users) | Status LED on column, via 5″ display, via online access | ||
| Charging cable | Charging cable | ||
| Outlets (DC) | 1 | ||
| Charging points | 1 | ||
| Number of charging cables | 1 | ||
| Liquid-cooled cable | - | ||
| Simultaneous charging of multiple vehicles | - | ||
| Cable length | 4m | ||
| Payment / authentication | Payment / authentication | ||
| NFC Reader | Yes | ||
| Energy meter (MID / calibration law) | Optional | ||
| Authentication | RFID, OCPP, Fahrzeug-ID (MAC), free charge | ||
| Direct payment | Optional | ||
| Payment methods (app, card, etc.) | 1. RFID card 2. Credit / debit cards (Mastercard, VISA), Maestro / bank card (dep. on acquiring bank) 3. Mobile payment (Google Pay / Apple Pay) | ||
| Payment terminal hardware | Worldline VALINA | ||
| Standards & certifications | Standards & certifications | ||
| Complies with the following directives | Upon receipt of test report | ||
| Basic standards | Basic standards | ||
| IEC 61851-1 | in progress | ||
| IEC 61851-23 | in progress | ||
| IEC 61851-21-2:2018 | in progress | ||
| DIN SPEC 70121:2014 | Yes | ||
| DIN EN ISO 15118-1/2 | Yes | ||
| German calibration law | Yes | ||
| IEC 62196-3 | yes, via cable manufacturer | ||
| Extras | Extras | ||
| Interface for load management | Yes, Modbus TCP | ||
| Advertising display possible | Yes | ||

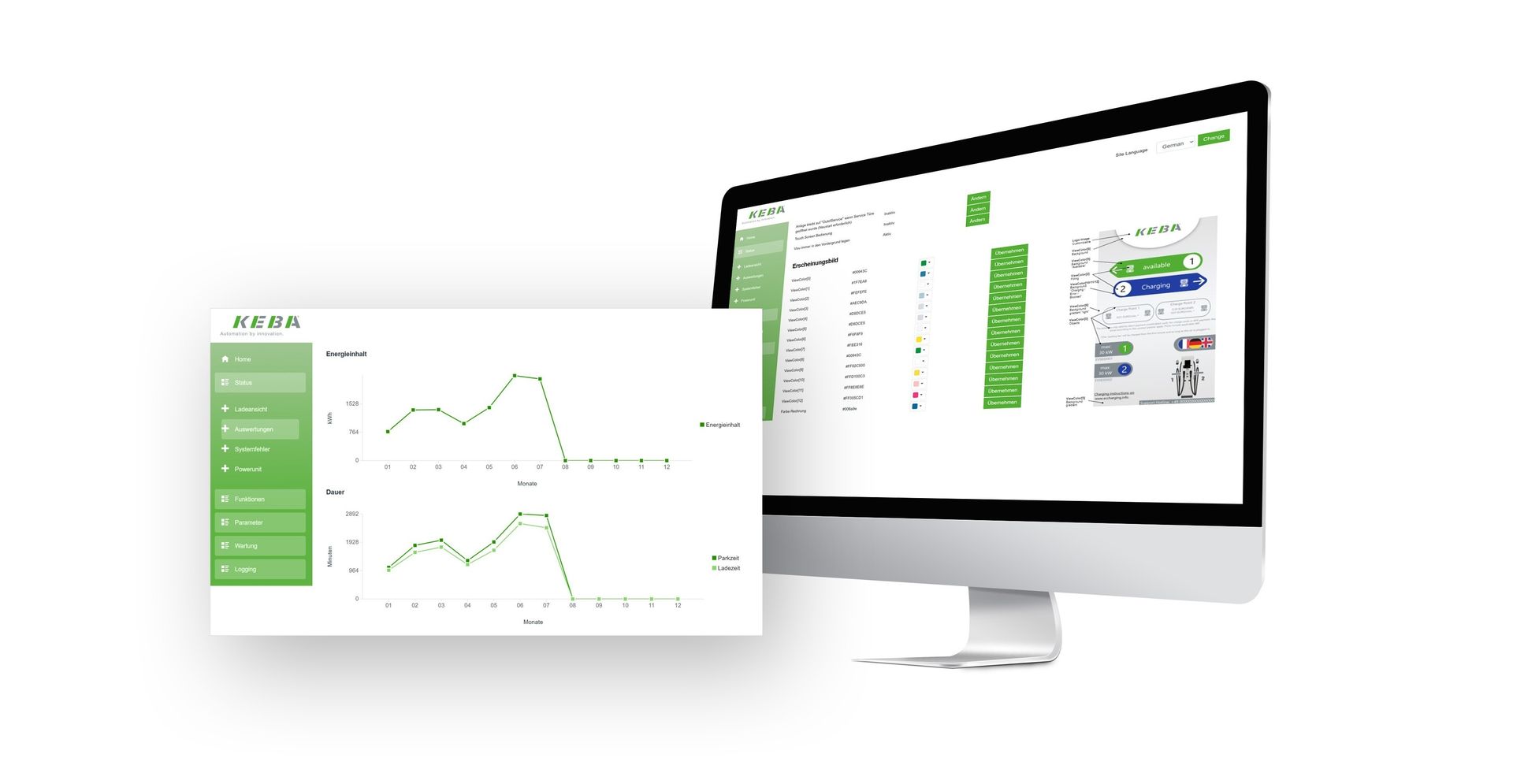

| Operator portal | Remote self-management via online access | ||
| Updatable | Yes | ||
